Overview

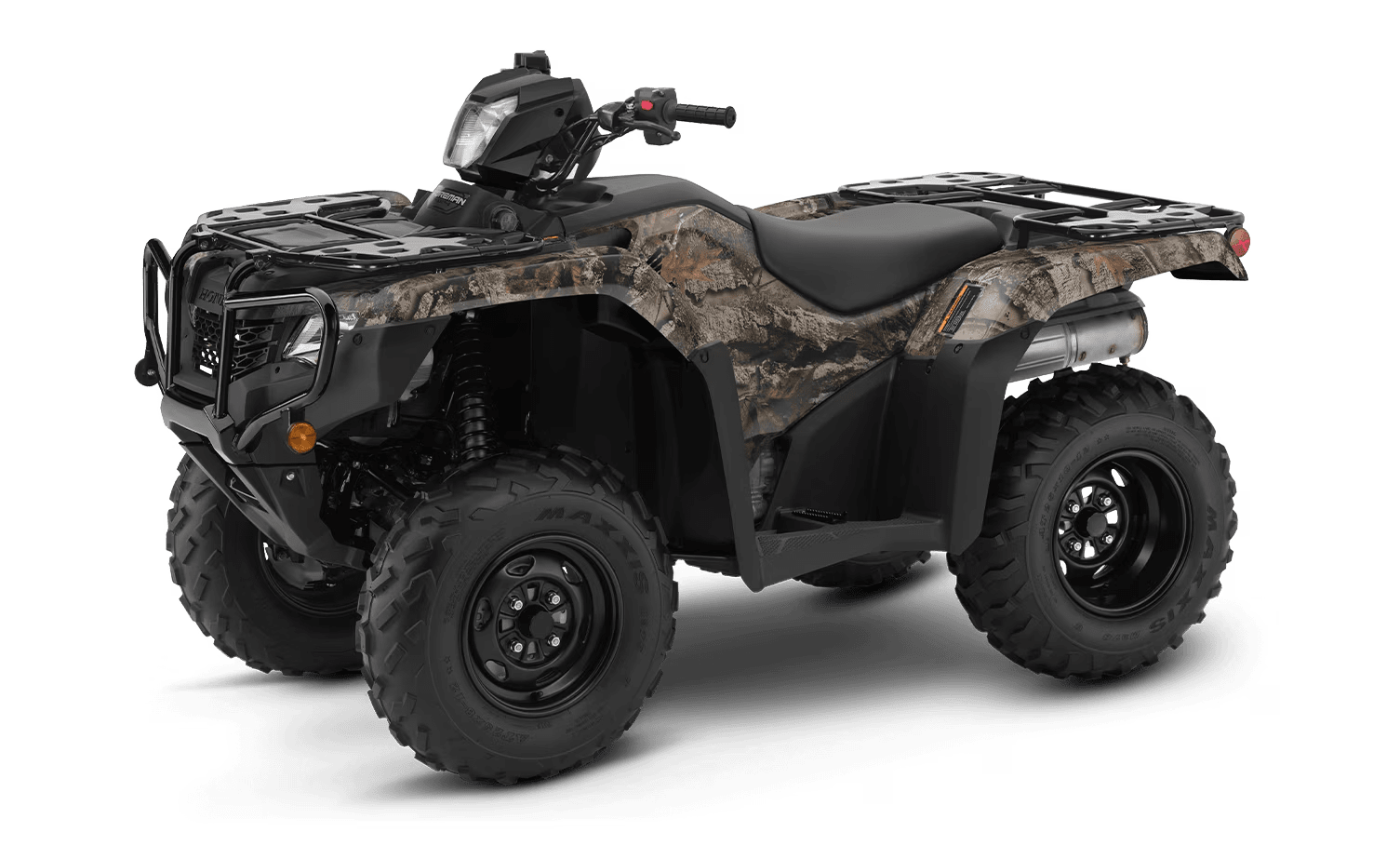

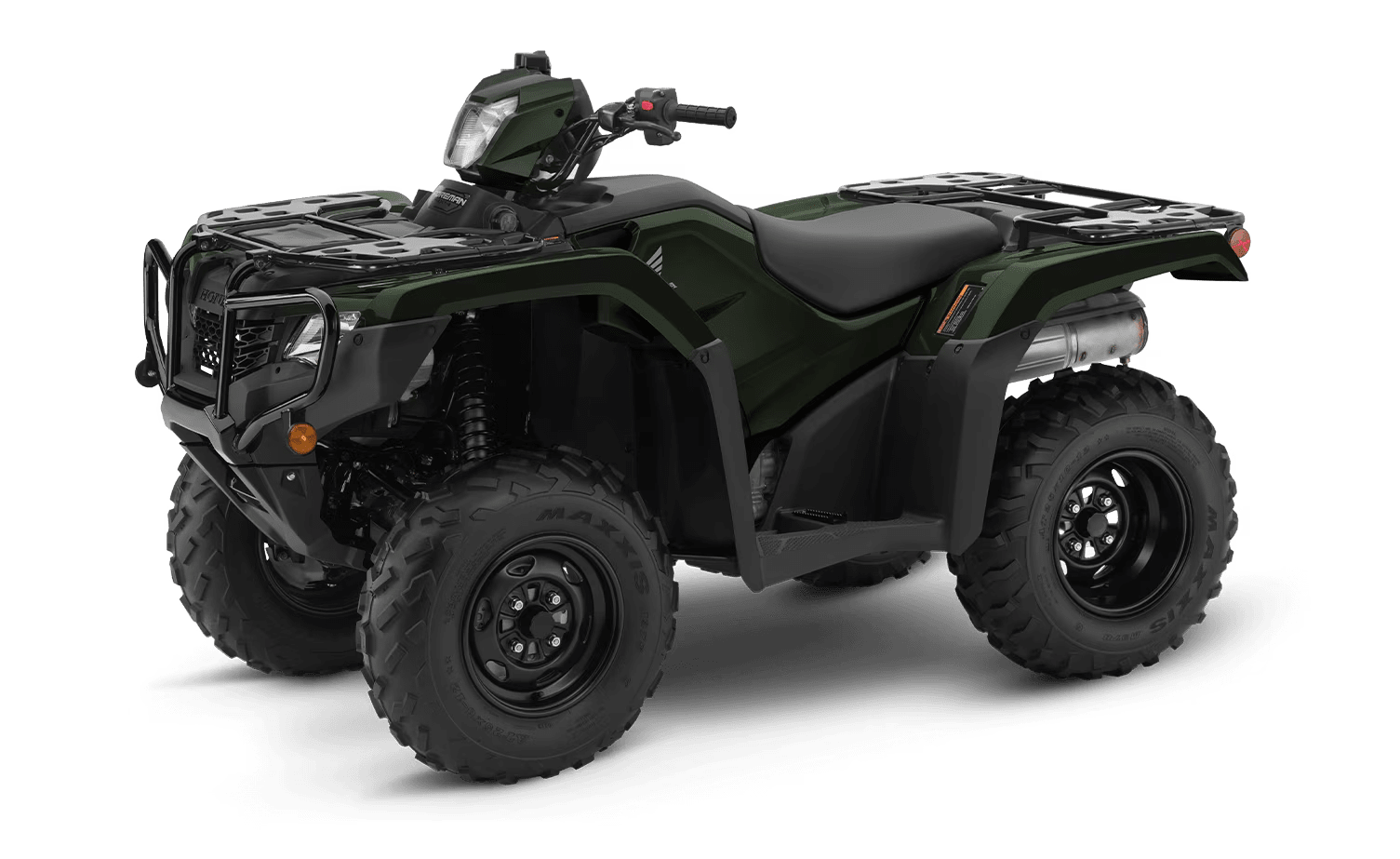

2027 Honda FourTrax Foreman4x4

All Terrain Vehicle (ATV)

Muscle for every mission

Some folks work nine to five. Some of us work from sunup to sundown. But the Honda Foreman 4x4—it never quits. Our legendary Honda reliability means it’s ready when you need it. Its powerful 518cc engine and long-travel suspension are just the start. Through smart engineering, unmatched build quality and a rich list of proven features, the Foreman 4x4 doesn't just work hard, it works better. It’s an ATV that not only you can count on, but the next generation can too.
Starting at $8,249 MSRP
Request Info
View Inventory

Specs & Features

Engine
Engine Type
518cc liquid-cooled longitudinally mounted single-cylinder four-stroke
Bore And Stroke
96.0mm x 71.5mm
Compression Ratio
9.5:1
Valve Train
OHV; two valves per cylinder
Induction
Programmed Fuel Injection system (PGM-FI); 36mm throttle body
Starter
Electric with optional auxiliary recoil
Drivetrain
Transmission
Five-speed with reverse
Driveline
Direct front and rear driveshafts with torque-sensitive locking front differential
Chassis Suspension Brakes
Front Suspension
Independent double-wishbone; 7.3-inch travel
Rear Suspension
Swingarm with single shock; 7.3-inch travel
Front Brakes
Dual 190mm discs
Rear Brake
160mm drum
Front Tires
25 x 8-12
Rear Tires
25 x 10-12
Dimensions
Length
82.9 inches
Width
47.4 inches
Height
47.8 inches
Wheelbase
50.0 inches
Seat Height
34.5 inches
Ground Clearance
7.5 inches
Curb Weight
635 pounds (includes all standard equipment, required fluids and a full tank of fuel)
Fuel Capacity
3.9 gallons, including 1.3-gallon reserve
Turning Radius
10.5 feet
Towing Capacity
848 pounds
Front Rack Capacity
88.0 pounds
Rear Rack Capacity
176.0 pounds
Other
Available Colors
Hero Red, Black Forest Green, TrueTimber® Atera Camo
Model ID
TRX520FM1
Emissions
Meets current EPA and CARB (California) off-road emissions standards.
Important Safety Information
Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly.
Factory Warranty Information
Duration
Transferable, one year included, limited warranty
Optional Extended
Extended coverage available with a HondaCare® Protection Plan
Powerful 518cc engine
Experience unwavering performance with our robust, liquid-cooled 518cc engine, which delivers the power you need off-road and on the job.
Front/rear cargo racks
Discover unmatched versatility with our durable steel racks. Equipped with our Pro-Connect® system, they enable easy attachment and removal of cargo boxes and accessories, enhancing functionality.
Swingarm suspension
The rear swingarm features a solid axle that enhances towing and hauling capabilities. Its long suspension stroke and comfortable seat allow you to tackle your favorite trails and the most demanding jobs with ease all day long.
Torque-biasing/locking front differential
With the Foreman’s front differential, you can choose between two-wheel drive, four-wheel drive, and four-wheel drive with a locking front differential.
